Alignment/Steering/Suspension
- Camber:
- Left -2 7/8, Right -2 7/8 (12/2024)
- Left -3.5, Right – 3.25 (6/2024)
- Left -2.9, Right -2.9 (2/2024
- Left-2.7, Right – 2.7 (7/2022)
- Castor:
- Left 3.5, Right 2.5 (2/2024)
- Left 3.5, Right 2.1 (7/2022)
- Toe:
- Total Toe 0.0 (12/2024)
- Total Toe Out 1/8″ (6/2024)
- Total Toe 0.0″ (2/2024)
- Left -.07 Right -.07 (7/2022)
- Thrust angle
- -.11 (2/2024)
- -.11 (7/2022)
- Steering: Down tube to steering box, epoxy welded, replaced fluid (3/2024)
- Ride Height: Raised chassis to reduce exhaust drag (12/2022). Need a bit more.
Shock Settings
| LF | RF | LR | RR | |
| 2/2024 | -1/8 | nc | -1/8 | -1/8 |
Brakes
- Front brake rebuild seals and bellows (6/2024)
- Rear brake rebuild seals and bellows (6/2024)
- Bleed brakes (12/2022, 4/2023, 10/2023, 4/2024. 6/2024)

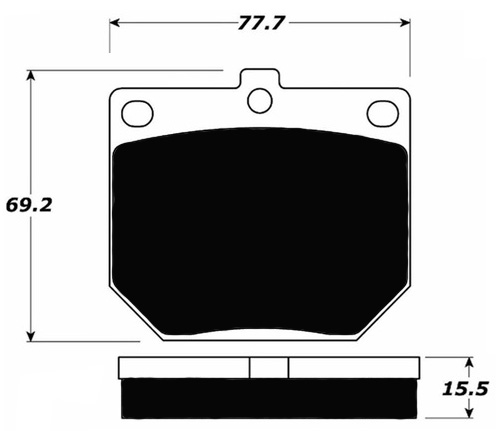

- Front brake pads new (12/2022, 10/2023)
- Rear brake pads (12/2022, 10, 2023)
- Disc check, no cracks (12/2022, 10/2023)
Carburetors and Fuel
- Replaced UG needles with UH (stock) needles (10/2024)
- Replace Fram fuel filter body and AN adaptors (6/2024)
- Jet height readjust to .09, fuel to below rim (6/2024)
- Needles UG (5/2024)
- Jet height readjust to .07″, fuel to .12″ (2/2024)
Chassis
- Replaced rubber exhaust hangers (5/2024). Exhaust pipe did not drag during May – Sept events.
- Raised chassis to reduce exhaust drag (12/2022). Need a bit more.
Cooling
- Fan belt replaced (6/2024)
Data System
- Added fuel pressure sensor (11/2024)
- Removed shock sensors (11/2024)
- Removed infrared tire temp sensors (9/2024)
- Added oxygen sensors (8/2024)
- Camera added (1/2024)
- Updated config file to remove output voltage (4/2023)
- Needed to add datahub serial numbers (4/2023)
- Added infrared tire temp sensors (12/2023)
Electrical
- Added Flagtronics 12/2024)
- Changed to CSI Distributor/16 selectable CSI curve 6 (11/2024)
- Changed to CSI Pro Distributor (5/2024)
- Distributor Advance: CSI Curve 12 (3/2024)
- Distributor Advance: – CSI curve 6 (3/2021)
Engine
- Added breather pipe to front tappet cover. Used only silicone gasket and no paper gasket. Routed front and rear tappet cover breather hoses “up” to breather tank (removed bottom loop). Rerouted valve cover breather hose to remove bottom loop and run horizontally to breather tank (6/2024).
- New starter motor (6/2024)
- Antifreeze added (11/2022, 10/2023/ 10/2024)
- Antifreeze removed, water added (4/28/2023)
- Oil change (12/2022, 12/2023, 12/2024)
- Plugs new (10/2023)
- Plug check (12/2022, 4/2023, 7/2023, 12/2024)
- Valve lash (.012 cold – 2/2024)
Exhaust
- Replaced rear rubber mount between exhaust pipes and floor (12/2024)
- New (double) exhaust header gaskets, welded gaps in muffler (12/2023)
- Sealant added to junction between header and bottom pipe (12/2022). Did not stop post combustion combustion in exhaust.
Safety
- Fire extinguisher recertified (12/2024, expires 12/2026)
- Safety Belts (not valid after 2026)
Transmission and Differential
- Diff fluid change (12, 2022, 12/2023)
- Trans fluid check (12/2022, 12/2023)
